Pre-made Bag Packers (Euro-style): These machines use pre-formed plastic bags. The stack is inserted into the bag, often with an "insertion angle," and then sealed. They are known for producing a high-quality finished look.
Pillow Pack / Flow Wrap Machines: This type uses a roll of film to form a bag around the product. The film is wrapped around the diaper stack, and the ends are sealed, creating a distinctive "pillow" shape. This method is common for single-piece trial packs or smaller packages.
Fully Integrated Stacking & Bagging Lines: The most advanced systems combine the stacking and bagging processes into a single, continuous machine. This "two-in-one" design saves floor space and is designed for maximum efficiency at high speeds.
Brand :
FOItem No :
FO-PM01Payment :
T/T，L/CProduct Origin :
ChinaColor :
CustmizedShipping Port :
Xiamen，ChinaLead Time :
100 days
| Working speed | UP to 500 pieces and 40 cycles/min |
| Product thickness dimensions | 8-14mm |
| Number of pieces per row | 12-44pieces/row |

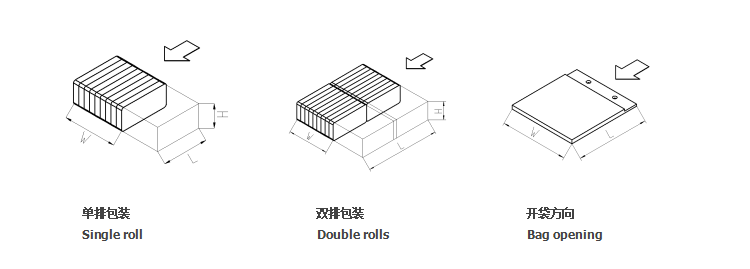

| Finished bags dimensions, single row : | Min. 120x100x150mm（ W x H x L ） |
| Max. 450x150x280 mm（ W x H x L） | |
| General dimensions | 3150*2600*2000mm （ W x H x L） |
| Weight | 2000KG |
| Electrical Power consumption | 12 KVA |
| Air Supply | 0.65-0.85Mpa |
| Machine Capacity | 350KW (Excluding glue machine and air compressor) |
| Bleed pressure | 0.6-0.8Mpa (Air compressor needs to be prepared by customers) |
About First One
Quanzhou First One Machinery Co.,Ltd have more than 15 years experience focusing on hygiene machines.
Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC，Omron and so on.
Turn-key service from start and its long life time service will be offered.
Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers.
Why Choose us ?
1. Reliable & Durable: Built with premium materials and core components to ensure long-term stable operation.
2. User-Friendly Operation: Intuitive interface and seamless payment process (supports cash/code scanning) suitable for all ages.
3. Easy Maintenance: Modular design ensures low failure rates and controllable maintenance costs.
4. Professional Support: Comprehensive services from site selection advice, installation, and commissioning to operation management and data analysis.
5. Flexible Customization: Customizable appearance, payment methods, brands, and product types to meet specific venue requirements.
