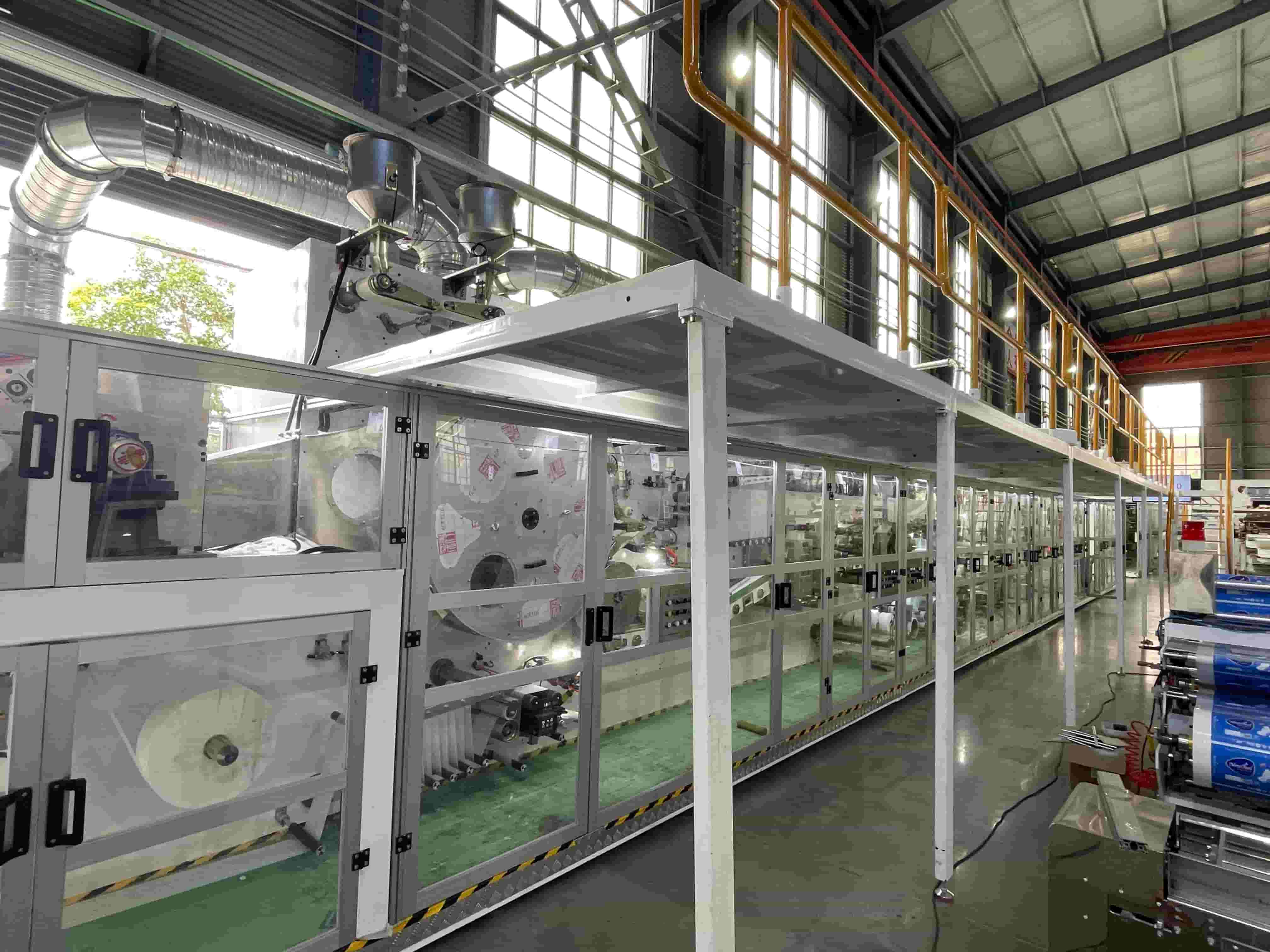

Full Servo Female Sanitary Napkin Making Machine

Name: Full Servo Female Sanitary Napkin Making Machine
Availability: InStock

Material Feeding: All raw materials are fed into the machine from their unwinding stands.

Core Formation: Fluff pulp is fiberized and mixed with SAP, then formed into a precise, shaped core on the moving back sheet.

Lamination: The top sheet is laid over the core. For wing pads, the wing material is attached at this stage.

Embossing & Adhesive Application: The top sheet is embossed, while the bottom receives adhesive and the release paper.

Die-Cutting: The continuous web is punched by a die to create the final, contoured shape of each napkin.

Folding & Counting: The individual napkins are folded, and a precise number are counted into a stack.

Packaging: The stack is automatically wrapped and sealed in its final consumer packaging.

Collection: The packaged napkins are conveyed out for cartoning and palletizing.

Product Parameters

Brand :
FO
Item No :
FO-S01
Payment :
T/T , L/C
Product Origin :
China
Color :
Customized
Shipping Port :
Xiamen,China
Lead Time :
180 days

Product Details

"High-Speed Sanitary Napkin Production Lines"

"Fully Automated, Minimally Supervised"

"ISO-Certified Hygiene Compliance"

"Ultra-Low Reject Rates"

"Quick-Change Flexibility for Any Pad Design"

"24/7 Technical Support Guarantee"

"From Raw Material to Sealed Packaging"

Item	Sanitary napkin production line
Output products	winged sanitary napkin
Control System	Full servo / Semi servo / Frequency motor / Economical
Part Description	Most of the spare parts are under numerical control precisely processing.

	Key mechanical parts are under CNC processing.
	Main outsourcing parts are world famous brand.
Operation Interface	Industry PLC, with humanistic designing and optional collection for production record
Design Speed	1200 pcs/min
Production Speed	1000 pcs/min
Overall Size of Equipment	28(L) * 7(W) * 3.4(H) m
Machine Power	Approx 300KW (380V, 50Hz)
Weight of Equipment	About 30T
Optional Functions	1. Camera monitoring system (control online size checking, location inspecting, missing inspecting, stain spot scanning and so on.)

	2. Material roll auto unwinding servo control
	3. Material roll auto unwinding converter control
	4. Automatic Packing machine
	5. Full-servo control stacker (auto bagging machine)
	6. Automatic bagging sealing machine

Why Choose us Sanitary Napkin Machine?

1. Reliable & Durable: Built with premium materials and core components to ensure long-term stable operation.

2. User-Friendly Operation: Intuitive interface and seamless payment process (supports cash/code scanning) suitable for all ages.

3. Easy Maintenance: Modular design ensures low failure rates and controllable maintenance costs.

4. Professional Support: Comprehensive services from site selection advice, installation, and commissioning to operation management and data analysis.

5. Flexible Customization: Customizable appearance, payment methods, brands, and product types to meet specific venue requirements.

Packing and Shipping
