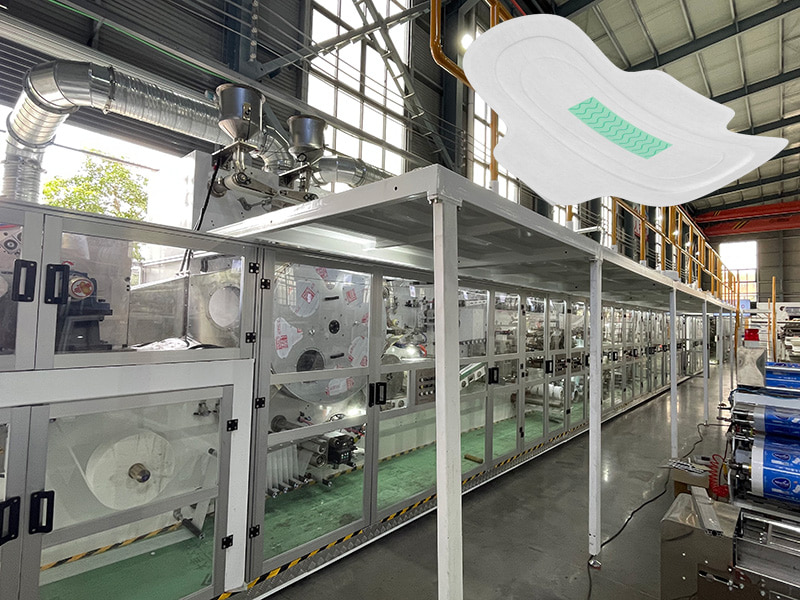

Sanitary Napkin Manufacture Machine

Name: Sanitary Napkin Manufacture Machine
Availability: InStock

Material Feeding: All raw materials are fed into the machine from their unwinding stands.

Core Formation: Fluff pulp is fiberized and mixed with SAP, then formed into a precise, shaped core on the moving back sheet.

Lamination: The top sheet is laid over the core. For wing pads, the wing material is attached at this stage.

Embossing & Adhesive Application: The top sheet is embossed, while the bottom receives adhesive and the release paper.

Die-Cutting: The continuous web is punched by a die to create the final, contoured shape of each napkin.

Folding & Counting: The individual napkins are folded, and a precise number are counted into a stack.

Packaging: The stack is automatically wrapped and sealed in its final consumer packaging.

Collection: The packaged napkins are conveyed out for cartoning and palletizing.

Product Parameters

Brand :
FO
Item No :
FO-SN01
Payment :
T/T, L/C
Product Origin :
China
Color :
Custmized
Shipping Port :
Xiamen，China
Lead Time :
180 days

Product Details

Why Choose us Sanitary Napkin Machine?

1. Reliable & Durable: Built with premium materials and core components to ensure long-term stable operation.

2. User-Friendly Operation: Intuitive interface and seamless payment process (supports cash/code scanning) suitable for all ages.

3. Easy Maintenance: Modular design ensures low failure rates and controllable maintenance costs.

4. Professional Support: Comprehensive services from site selection advice, installation, and commissioning to operation management and data analysis.

5. Flexible Customization: Customizable appearance, payment methods, brands, and product types to meet specific venue requirements.

About First One

Quanzhou First One Machinery Co.,Ltd have more than 15 years experience focusing on hygiene machines.

Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC，Omron and so on.

Turn-key service from start and its long life time service will be offered.

Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers.

Item	Sanitary napkin production line

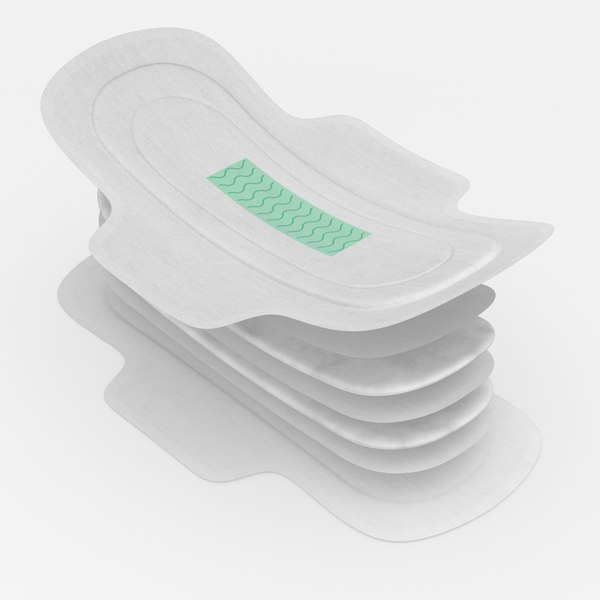

Output products	winged sanitary napkin
Control System	Full servo / Semi servo / Frequency motor / Economical
Part Description	Most of the spare parts are under numerical control precisely processing.

	Key mechanical parts are under CNC processing.
	Main outsourcing parts are world famous brand.
Operation Interface	Industry PLC, with humanistic designing and optional collection for production record
Certificates	CE, ISO9001:2008, SGS
Design Speed	800 pcs/min
Production Speed	600 pcs/min
Overall Size of Equipment	28(L) * 7(W) * 3.4(H) m
Machine Power	Approx 300KW (380V, 50Hz)
Weight of Equipment	About 30T
Optional Functions	1. Camera monitoring system (control online size checking, location inspecting, missing inspecting, stain spot scanning and so on.)
	2. Material roll auto unwinding servo control
	3. Material roll auto unwinding converter control
	4. Automatic Packing machine
	5. Full-servo control stacker (auto bagging machine)
	6. Automatic bagging sealing machine
