Core Formation: Fluff pulp is fiberized and mixed with SAP to form the highly absorbent core.
Lamination: The core is wrapped and combined with the top sheet and back sheet materials.
Elastic Attachment: Leg elastics and waistbands are applied. Advanced machines use ultrasonic bonding for a glue-free, soft waistband.
Shape Cutting & Sealing: The continuous web of material is die-cut into the final pants shape and the sides are sealed to form the pull-up design.
Folding & Packaging: The finished pull-ups are folded, stacked, counted, and automatically packaged.
Brand :
FOItem No :
FO-02Payment :
T/T，L/CProduct Origin :
ChinaColor :
CustomizedShipping Port :
Xiamen，ChinaLead Time :
180 days

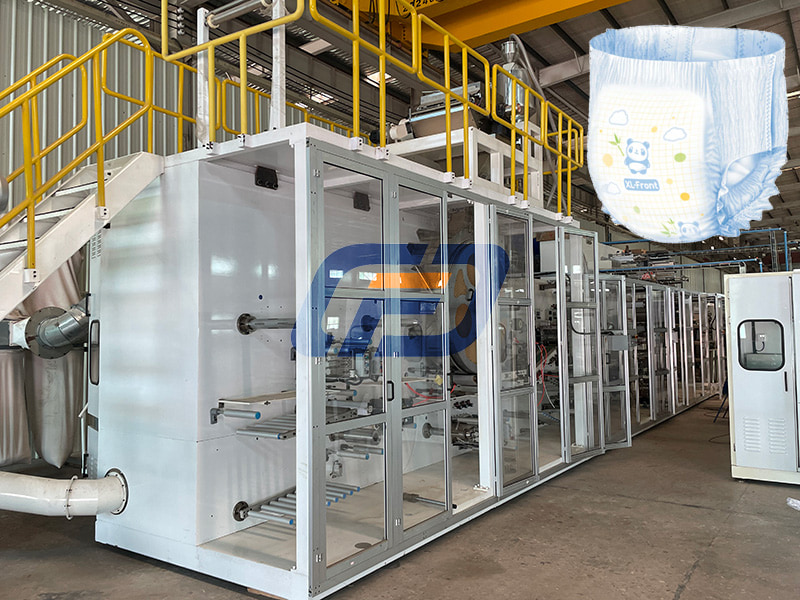

The pull-up Baby Diaper Machine includes main machine, glue applicators, packing system
and other accessory equipment including air compressor, vision detection system
and metal detection machine etc.
| Design speed | 600pcs/min |
| Stable working speed | 450-500pcs/min |
| Qualified rate | 97%,exclude the wastage due to the glue applicators and materials splicing joint |
| Efficiency | 85% |
| installation capacity | 340KW |
| Electricity | 380V 5%50HZ |
| Wire | Three phases four wires 380V/50Hz (ground wire) |
| Air pressure | 0.6Mpa |
| Total weight | About 80tons |
| Machine size | 38*8*4.5 M(L*W*H) |
| Working space | 42*11*6 M (L*W*H) |
| Machine color | Rice white ,can be changed by order |

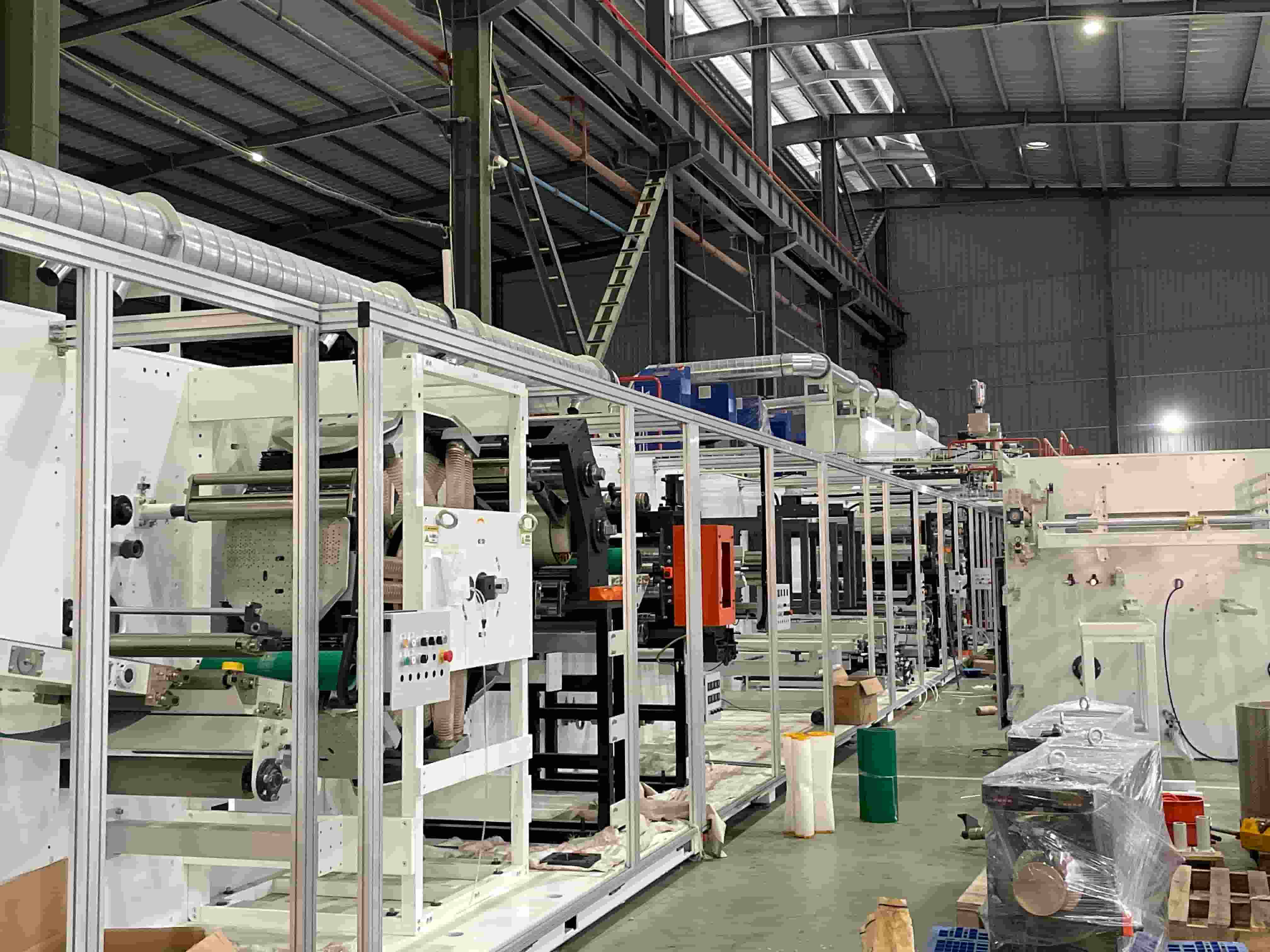

Factory Processing Map
Packaging and Shipping
 |
 |
If you are interested in our machine, please feel free to contact us at any time!
