High Speed Fully Servo T Shape Baby Diaper Machine

Name: High Speed Fully Servo T Shape Baby Diaper Machine
Availability: InStock

Price: $200,000 – $850,000

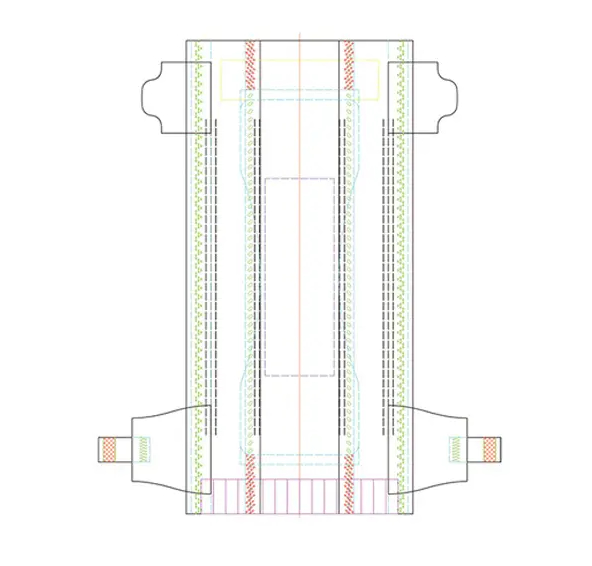

1. Product structure:

Up & Down Tissue Fluff core(mix with SAP),ADL,Backsheet,Frontal tape,Topsheet,Leg cuff N.W,Side tap, waistband

2. Control system:

PLC control system,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digization.

3.Tension system:

Up & Down Tissue,ADL,Back sheet,Top sheet,Cuff N.M,are adopt A& B shaft active unwinding by inverter motor.

4.Drive system:

3-shaft mechanical drive,semi servo,full servo can be choose by customer's requirements

5.Safety system:

It has safty device on the operating side,matched with urgent stop switch,High audio fan uses sound insulation or silencer.

6.Packing way:

Equipment with the stacker at the request of client.

7.Materials corrective system:

Germany BST automatic web guide system(optional)

Product Parameters

Brand :
FO
Item No :
FO-03
Payment :
T/T，L/C
Product Origin :
China
Color :
Custmized
Shipping Port :
Xiamen，China
Lead Time :
180 days

Product Details

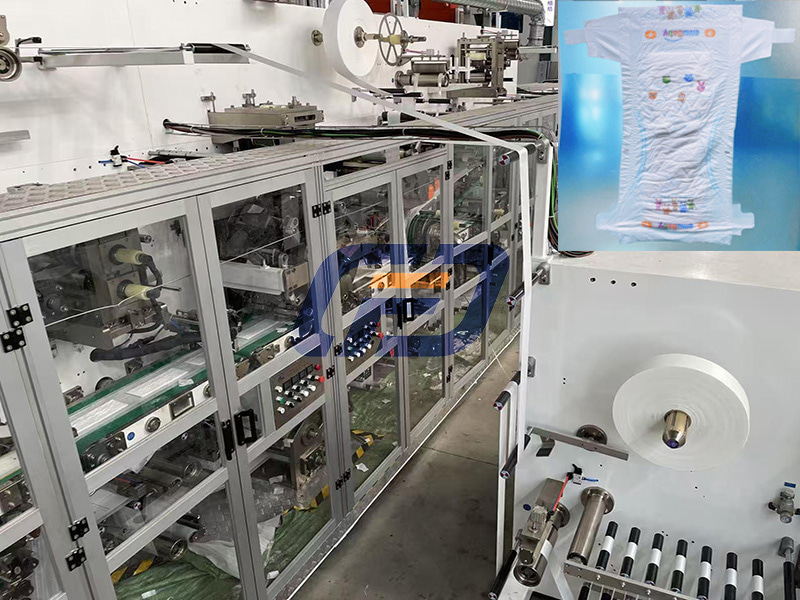

High Speed T Shape Baby Diaper Making Machine

Design speed	800pcs/min
Stable speed	700pcs/min
Pass precentage	97%
Work efficiency	85%%
Power source	380V,50HZ,(3phase,4lines+ground wire)
Machine capacity	about 350KW
Air pressure	0.6-0.8Mpa
Machine weight	About 90T
Machine color	Customized

Main Product

1. Baby Diaper & Pull-up Pants Production Line

2. Adult Diaper & Pull-up Pants Production Line

3. Sanitary Napkin & Panty Liner Production Line

4. Under Pad Production Line

6. Pet Pad Production Line

About First One

Quanzhou First One Machinery Co.,Ltd have more than 15 years experience focusing on hygiene machines.

Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC，Omron and so on.

Turn-key service from start and its long life time service will be offered.

Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers.

Factory Processing Map
